WILLY 10,13 HPL Stainless

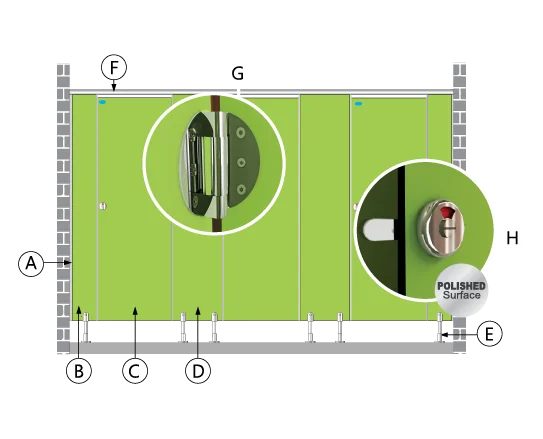

Diagram

A

ALUMINUM U-PROFILE
อลูมิเนียมตัว U

B

SIDE PILASTER
เสาข้าง

C

DOOR
ประตู

D

PILASTER
เสากลาง

E

ADJUSTABLE FOOTING
ขาตั้ง

F

TOP CHANNEL
บาร์บน

FEATURES

G

SPRING HINGE
บานพับสปริง

H

LOCK RIM BOLT WITH INDICATOR
กลอนกลมผิวเงา

Product Color

Standard Colour
Lime
Willy-ho05

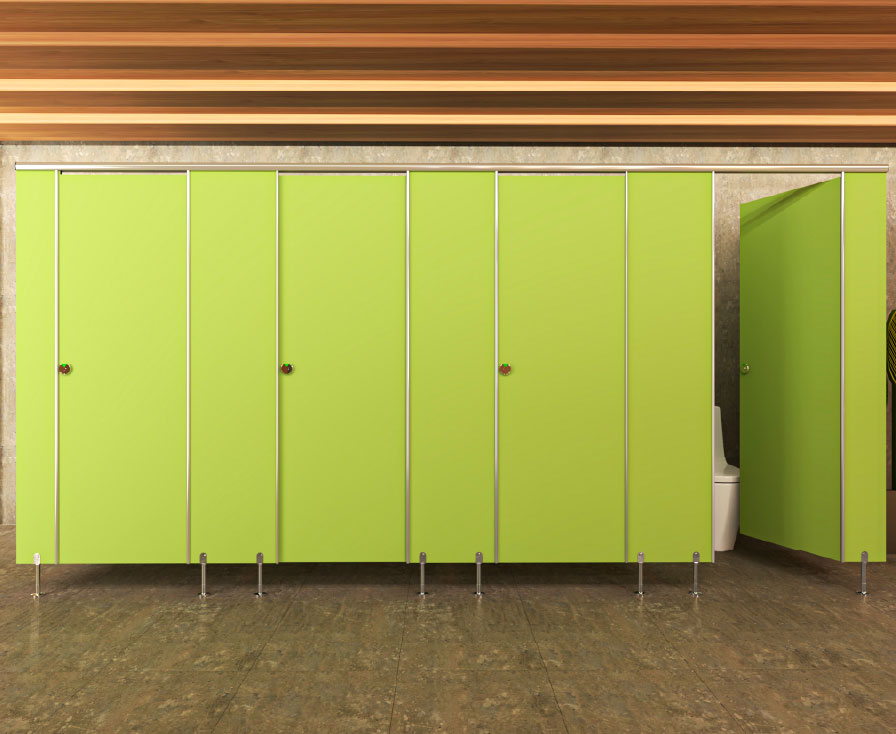

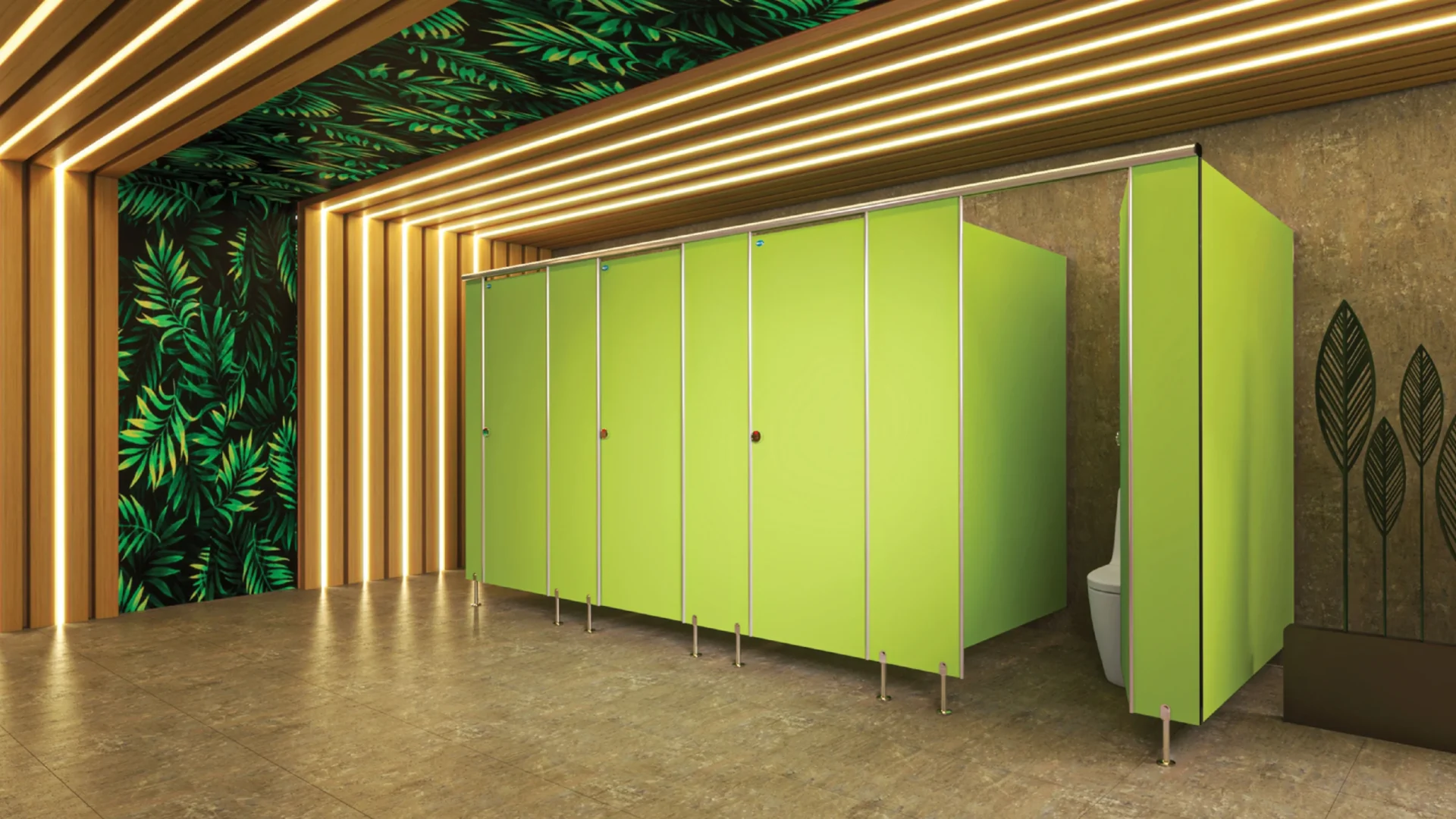

Image Center

* ภาพในแคตตาล็อกเป็นภาพสำหรับโฆษณาเท่านั้น

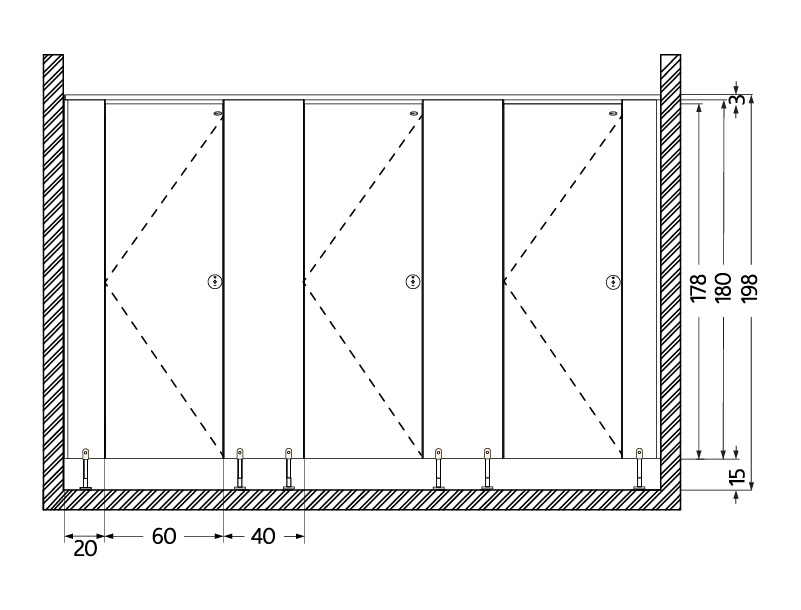

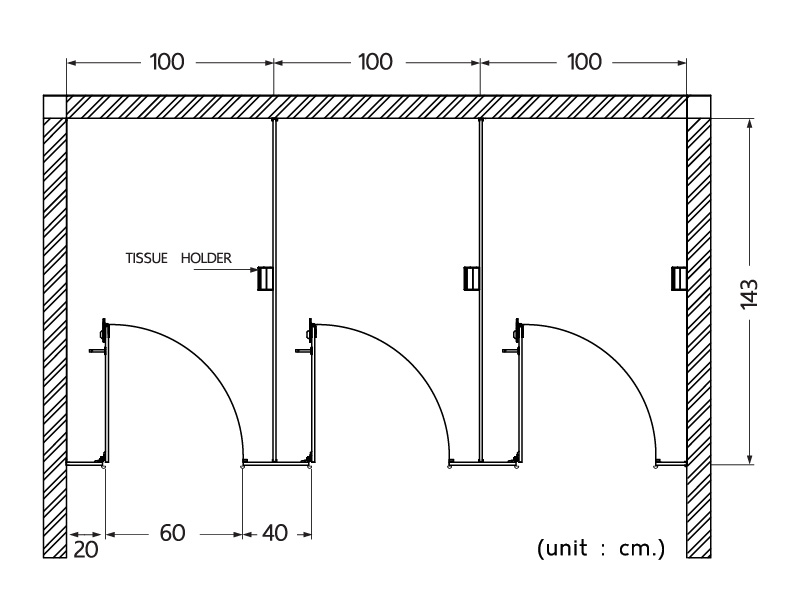

DRAWING

Product Components

Coat hook

Coat hook

Code No: W-10 SC-1032 (P) / W-13 SC-1332 (P)

Surface: Polished

Lock rim bolt with indicator

Lock rim bolt with indicator

Code No: W-10 SL-1024 (P) / W-13 SL-1324 (P)

Surface: Polished

Spring hinge

Spring hinge

Code No: W-10 SH-1012 (P) / W-13 SH-1312 (P)

Surface: Polished

Tissue holder

Tissue holder

Code No: W-10 ST-1041 (P) / W-13 ST-1341 (P)

Surface: Polished

Adjustable footing

Adjustable footing

Code No: W-10 SF-1052 (P) / W-13 SF-1352 (P)

Surface: Polished

Adjustable footing

Adjustable footing

Code No: W-10 SF-1053 (P) / W-13 SF-1353 (P)

Surface: Polished
